Desiccant Bed Dryers
-
NDB-MM Micro Series Dual Bed Desiccant Dryer
25-50 lb/hr (11-22 kg/hr)
NDB Micro Series Dryers use the industry standard dual-bed drying concept, offering – 40°dew point process air, in a compact single blower configuration. One blower and multi-function valve control both the process and regeneration air flow and the heaters are contained within the desiccant beds to minimize space.
-

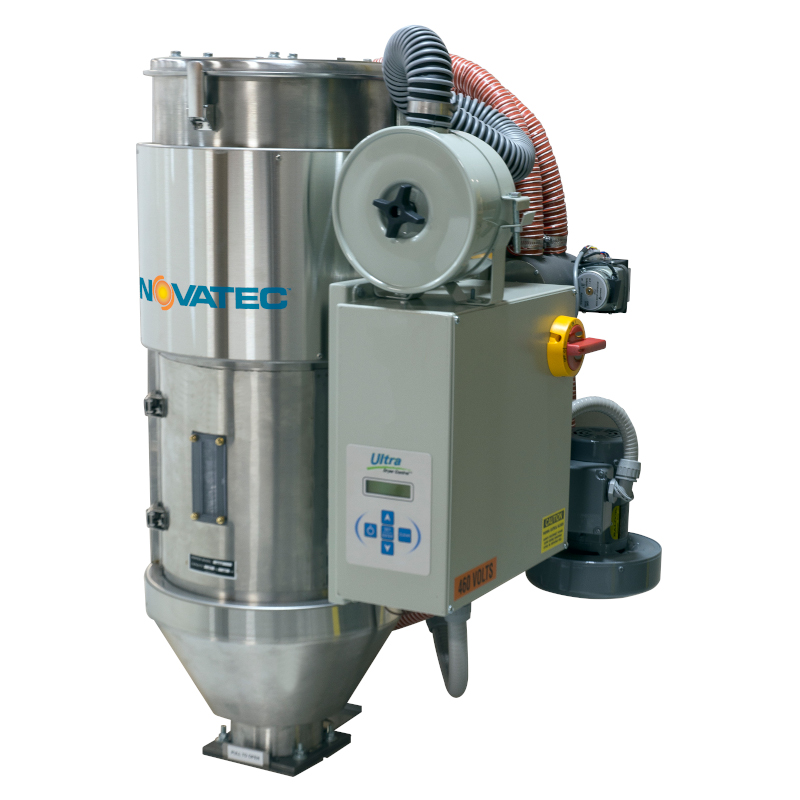

Machine Mount Desiccant Dryer
AHM Series: 2-Desiccant Bed Design – 15-60 lb./hr. (7-27 kg/hr.)
HPHM Series: 4-Desiccant Bed Design – 40-60 lb./hr.(18-27 kg/hr.)
These desiccant bed dryers save valuable floor space by combining the dryer with the hopper to mount on the throat of injection or extrusion machines.
-

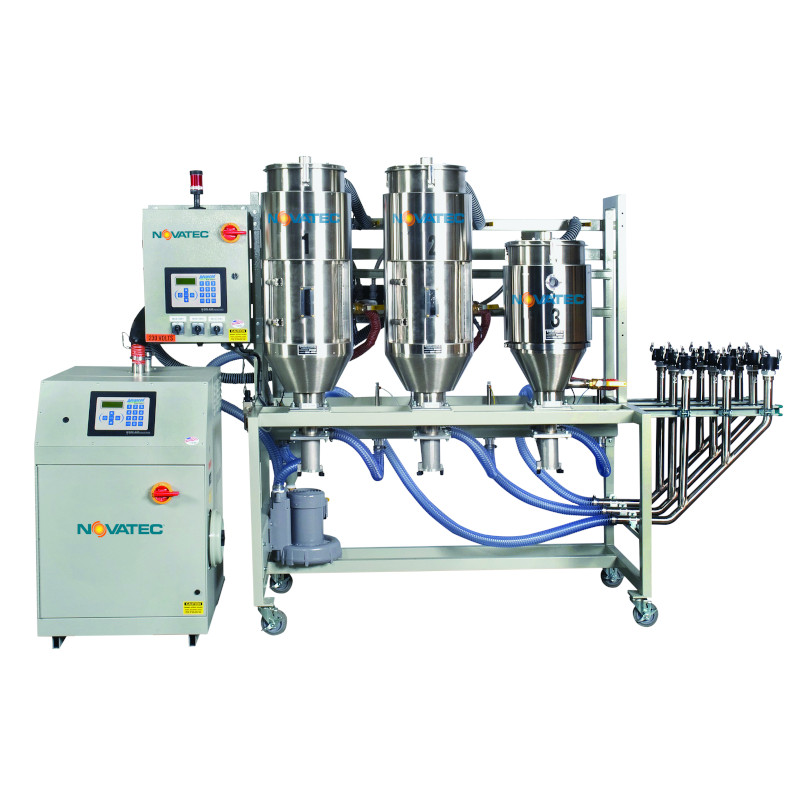

Hopper Bank Dryer System
15-300 lb./hr. (7-135 Kg/hr.) *Based on 38 lb./ft³ Bulk Density
These mini central dryer systems are ideal for processors who need to dry up to six different resins with different drying temperatures at one time with a single dryer…or dry colorants for blending at machine throat. Add a closed loop conveying system with a manifold and create a mini Central Dry/Convey System.
-
NDB Series Dual Bed Desiccant Dryer
100-3800 lb/hr (45-1725 kg/hr)
The NDB Series Dual-Bed Dryer technology includes separate heaters and blowers for process and regeneration cycles. A pair of heavy duty, expertly engineered electrical 4-way valves to direct air flow through the dryer for material drying and desiccant regeneration. The NDB-750 model and up feature a hopper-mounted process heater.
-

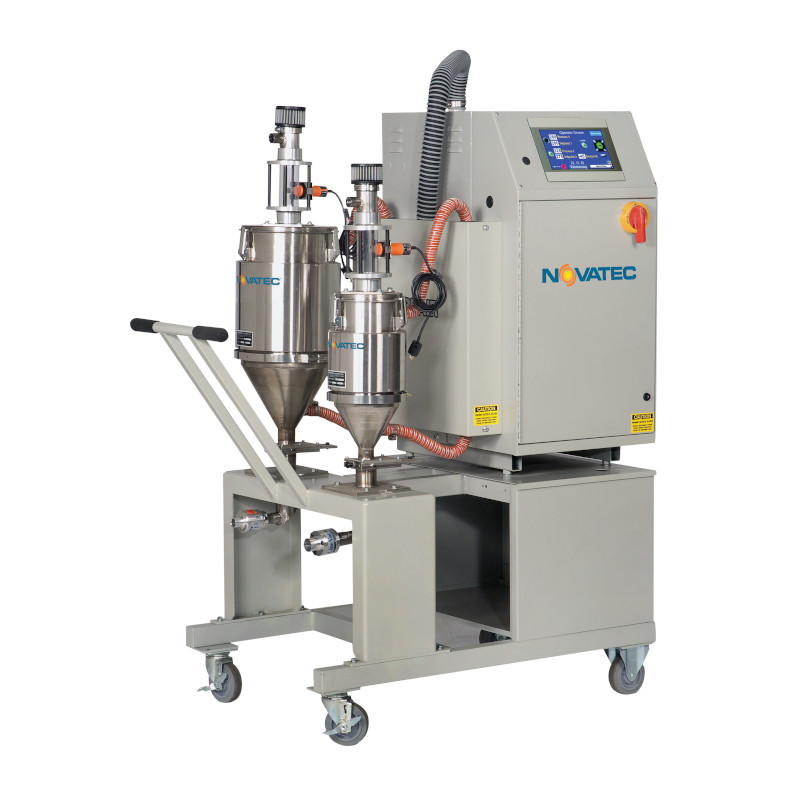

PDll Portable 4-Bed Plastics Dryer
PDll Series Dryers with 2 hoppers from 10-300 lb. capacities
These 4-bed desiccant dryers efficiently dry two materials at different temperatures and feed them to 2 different presses or to a single co-injection or co-extrusion process. New 7” color touch screen control is standard on all PPDll dryers.
