Zero Uncertainty. Eliminate Drying Inconsistencies.
The industry’s only patented Dual-Flow compressed air resin dryer with lifetime FiberMax™ membrane technology
NovaDrier eliminates the inconsistency and throughput problems that have plagued ordinary compressed air dryers for decades.
The Problems NovaDrier Eliminates
Ordinary compressed air resin dryers promise simplicity but deliver two fatal flaws:
- Inconsistent Drying Performance: Air compressor outputs fluctuate and ordinary dryers with ordinary membranes can’t compensate. Parts that dried to 200 PPM yesterday come out at 800 PPM today…and you don’t know until it’s too late.
- Wasted Compressed Air: Ordinary single-flow dryers don’t have enough force to cover the entire hopper. To compensate, they must use excess compressed air-up to 65% more-leave the upper half of your hopper starving for heat. Either way, you lose.
Ordinary compressed air dryers are single-flow, which leaves the upper resin bed cold & underdried with uncertain results. NovaDrier’s Dual-Flow delivers uniform heat throughout, ensuring every pellet exits to spec.
How NovaDrier Changes Everything
NovaDrier solves both inconsistent drying performance & wasted compressed air with two exclusive innovations:
Only NovaDrier features Patented Dual Flow Design
- Dual flow delivers two powerful drying zones
- Upper zones removes 75-80% of moisture
- Lower zone finishes the job ensuring every pellet exits to spec
- 65% less compressed air consumption vs. single-flow design
- Scales to 100 lbs/hr while keeping your plant’s air supply available

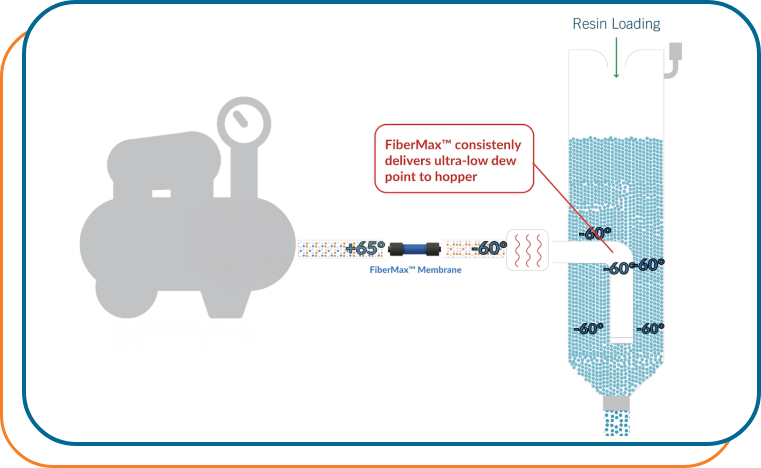

NovaDrier’s FiberMax Advanced Desiccating Membrane
- Guaranteed -40ºF or lower dew points every single day
- Automatically compensates for compressor fluctuations
- Performs regardless of humidity or compressor intervals
- Uses 50% less purge air than ordinary membranes
- Guaranteed for life-not a consumable like desiccant beads are
Dual Flow + FiberMax Technology
NovaDrier’s FiberMax™ membrane and patented Dual-Flow design work together to eliminate drying inconsistency, waste, & worry. Every pellet dries to spec. Every single run.

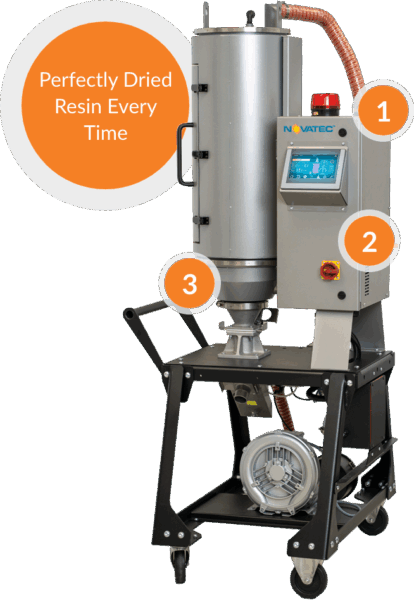

1- Advanced HMI Touchscreen
- Intuitive 7″ touchscreen interface
- Real-time process monitoring
- Pre-programmed resin recipes for easy setup
2 – Lifetime FiberMax™ Membrane
- Guaranteed -40ºF or lower dewpoints
- Automatically compensates for compressor drift
- 50% less purge air than ordinary membranes
- Lifetime guarantee – not a consumable
3 – Patented Dual Flow Design
- Recaptures and amplifies air 5X with a venturi system
- Two heated drying zones: upper removes 75-80% of moisture, lower finishes
- 65% less compressed air than single flow designs
- Uniform drying from top to bottom
Multiple innovations working together to eliminate uncertainty & deliver perfectly dried resin…every single time!
Technical Specifications
- Model Range: 10-100 lbs/hr
- Dew Point: -40°F or lower guaranteed
- Compressed Air: 10 CFM @ 50 lb/hr model
- Air Consumption Reduction: Up to 65% vs. single-flow
- Maintenance: Just two annual filter changes
- Membrane: Lifetime FiberMax™ guarantee
- Warranty: Unparalleled 5-Year Novatec Promise
- Applications: Able to efficiently dry all resin types
Eliminate the Uncertainty!
Perfectly dried resin. 65% less air. Near-zero maintenance. Zero uncertainty.
