Vacuum Pumps

Function of Vacuum Pumps

Vacuum Pumps, in Central Plastics Conveying Systems generate vacuum in the air lines, which, in turn, pulls plastics materials through the material lines to Vacuum Receivers (Vacuum Stations). There are several types of Vacuum Pumps. The most common is a Positive Displacement Pump (PD Pump).

Read More

Others may be called CLAW Pumps or Hook and Claw pumps or just Long Distance Pumps (because of the high vacuum levels they generate). Yet others have a spiral flow design. They are a special type of PD Pump – referred to as MaxFlow. Finally, there are Regenerative Blowers (Regen Pumps) where a blower actually creates the vacuum. When designing a Central Plastics Conveying System, the plant layout is the first thing that has to be considered but the Vacuum Pumps are the starting point in a Plastics Conveying System design. The choice of pump type and Hp depends on the type of material being conveyed, the distance it is being conveyed and the pounds/hour required at each destination. It’s  important that processors not be corralled into using a single type of pump for every application.

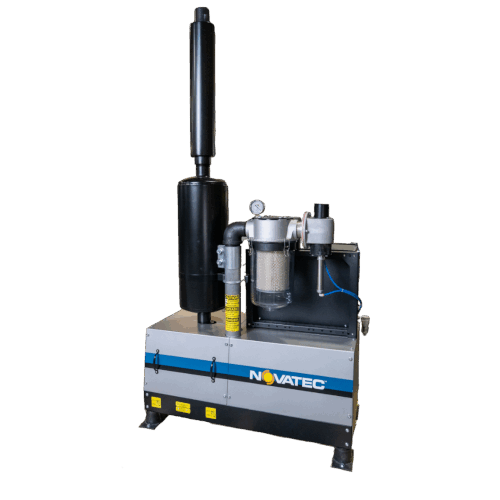

VPDB Series Positive Displacement Pump

3 - 20 hp (2.5kw - 14.9kw)

Product Description

These pumps provide powerful vacuum to convey free flowing pellets, powders and regrind in multi-receiver systems.

    Features:

    • Electronic Motor Overload Protection
    • Starter Panel Disconnect
    • Vacuum Breaker Valve and Clear Canister* Safety Filter
    • Rotary Lobe Blower
    • Rotary Lobe Blower, Belt Driven by a 3 Phase Motor on a Slide Base
    • NOTE: 25 Hp Positive Displacement Pump Available Upon Request - Contact Factory
See More & Quote Now

VRB Series Regenerative Pump

3.4 – 17 Hp (2.6 – 12.6 kw)

Product Description

VRB Series Vacuum Pumps provide compact, quiet, maintenance-free vacuum conveying power for free flowing pellets, powders and regrind. Each VRB is shipped fully assembled and permanently lubricated to deliver optimum vacuum and is consolidated on a compact frame.

    Features:

    • Minimal Maintenance
    • Quiet Operation, below OSHA recommended limits
    • Full Range Conveying
    • Temperature Switch
    • Discharge Selection Valve Option
    • Electronic Motor Overload Protection
    • Vacuum Breaker Valve and Safety Filter
See More & Quote Now

MVP MaxFlow Series Vacuum Pump

7.5 to 20 HP (5.6 - 14.9 kw)

Product Description

The MVP Series pump delivers high efficiency operation with a 12-15% higher air volume and about 10% increase in vacuum compared to standard positive displacement pumps. This can make a big difference when processors need additional conveying capacity without the expense of re-plumbing conveying lines. Each vacuum pump is shipped fully assembled, lubricated and tuned to deliver optimum vacuum, all consolidated on a compact frame.

    Features:

    • Easy Installation
    • Spiral Flow Design, Belt Driven by a 3 Phase Motor on a Slide Base
    • Starter Panel Disconnect
    • Electronic Motor Overload Protection
    • Vacuum Breaker Valve and Clear Canister* Safety Filter
    • 2-Year Warranty
See More

UltraVac PowerGuard™ Pump

6 -9 Hp (4.5 - 6.7 kw)

Product Description

UltraVac is a PowerGuard™ product from Novatec for high vacuum applications. UltraVac generates much higher vacuum levels than traditional pumps yet are so efficient that energy usage is reduced by 20-50%. When you need to convey more material over longer distances, simply replace traditional pumps with UltraVac without increasing line size.

    Features:

    • Increase Throughput and Conveying Distance
    • Minimal Maintenance
    • Vacuum Breaker Valve
    • Cartridge-Type Inlet Filter
See More
